REVIEW: EOTech G43 STS Magnifier

06/30/2021By Redaktion

EOTech G43 Magnifier Optiken

The G43 Magnifier is the successor to the G33 - HERE in the SPARTANAT Review - which had nothing to complain about. But progress cannot be stopped, so EOTech continued to tweak the optical system of the magnifier. The result is the G43 Magnifier, which is about two centimeters shorter.

As seen in the picture, our G43 weighs 331g, almost the same weight as the G33 Magnifier.

If desired, the rubber cover can be removed to save a few grams, but this risks scratches and the adjustment turrets continue to protrude.

The lens adjustment can be done without tools and the diopter adjustment is precise.

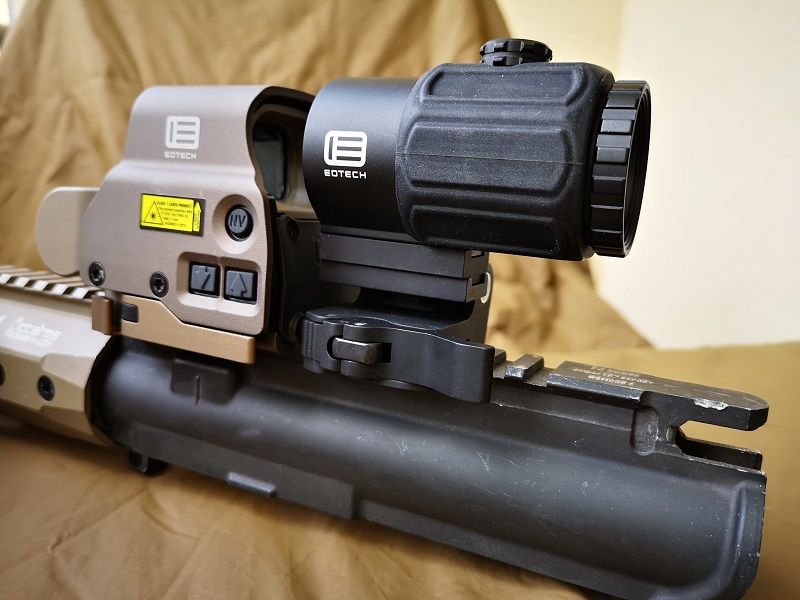

With the riser, you have the ideal height for the EOTech EXPS reflex sight. The mechanics are military-tested and top-notch.

The mounting is the same as with the G33 Magnifier and we are still very impressed with it. STS stands for "Switch To Side," explaining the mounting mechanism clearly. The housing is water-resistant up to 10 meters, shockproof, and additionally protected with a removable rubber coating.

The field of view is clear, as you would expect. All this comes at a price - at over 640 euros, the G43 falls into the expensive segment of our comparison test.

Speaking of comparison, here is the G43 in a direct comparison to the G33. The G33 Magnifier is the sandy-colored one, just to avoid any confusion. The difference in length is clearly noticeable.

In handling and processing, both optical aids are identical.

The G43 Magnifier has a smaller front lens. Because of this resulting optical system, the edge area is slightly curved in motion. This is not noticeable when observing calmly. You have a distortion-free, clear image.

Point Assignment

Dimensions: 5/5 points

The most compact of all, with 78mm x 50mm x 50mm.

Height from Mount to Lens Center (Not rated)

39mm or 46mm with Riser

Weight (Optic/Optic with Mounting): 4/5 points

Around 330 grams - weight is good.

Mounting Weight (Not rated)

87 grams

Magnification: 3/5 points

3x magnification with 3 points as the standard magnification in our test series

Optical Quality: 4/5 points

Bright, clear image, sharp edges. Only a slight distortion of the image is noticeable in lateral movement.

Mechanical Quality: 5/5 points

All moving parts operate smoothly and the device is well made

Eye Relief: 4.5/5 points

6.4cm - A very good eye relief.

Field of View: 4/5 points

7.5° or ~13.2m at 100m - Good field of view at 100 meters

Shockproof/Waterproof: 5/5 points

Shockproof and waterproof up to 10 meters, what more could you ask for.

Adjustability: 4/5 points

Lens can be adjusted horizontally and vertically, diopter adjustment available. Unfortunately, exposed adjustment turrets

Mount Available Yes/No: 5/5 points

Mount available. And it is very good.

Accessories: 2/5 points

Riser

Price: 2/5 points

The EOTech is one of the most expensive devices in the series, but quality comes at a cost.

CONCLUSION: Best quality at a reasonable price. Superior to the predecessor G33 due to its more compact design. Minor deductions are made due to slight distortion at the edges during movement, but this is due to the lens curvature from the compact design. Overall, a top optic.

HERE at IEA-Mil Optics you can order the G43 STS directly. The magnifier costs 649 euros.
