REVIEW: Sightmark 7x Tactical Magnifier

02/18/2017By Redaktion

3x 5x 7x Aimpoint

Sure, please provide the text that you would like me to translate.

To round off the magnifier program, Sightmark also offers a 7x model in their lineup. The dimensions of the device are 150mm in length, 45mm in width, and 48mm in height.

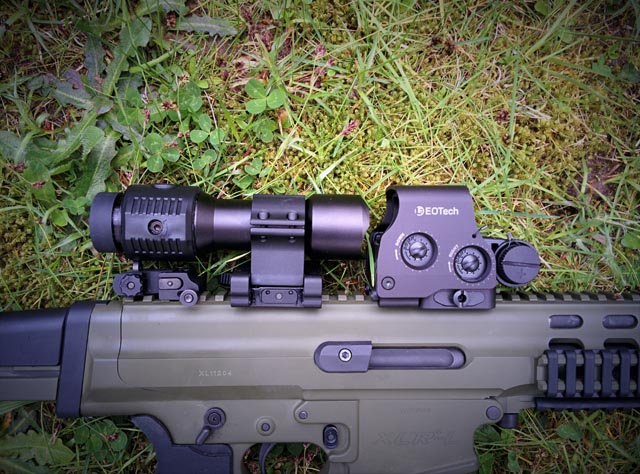

Due to the extremely long housing, the issue of placing a red dot sight and using backup iron sights is further complicated by the head placement on the buttstock. So, you either have to move everything further forward or move your head further back.The weight of the 7x Magnifier is exactly the same as the 5x model. We were surprised by this since it is a whole centimeter longer. Was something left out? We don't know, so the weight for a 7x Magnifier is acceptable.

Mechanically, the 7x is the same as the 5x and 3x models. The same mounting advice applies as with the others, we recommend a better one.Optically, the 7x is the worst device from Sightmark. The oval effect is even stronger here, and the blurriness at the edges increases. This makes the actually usable field of view extremely small. If you only need it for making precise shots on static targets, you can use it. It is recommended to use it with a reflex sight with a large aperture - like EOTech, Falke, or Aimpoint Comp/Pro.

The eye relief for the Sightmark 7x is only about 3cm, which can be limiting depending on the rifle. If a larger caliber than .223 is used, it could be painful and cause eye strain. The field of view is extremely small at 5.9 meters at 100 meters.

Accessories only include the manual and an adjustment tool.

Points Distribution (Click me)

Dimensions: 1/5 Points

Quite long at 140mm x 45mm x 48mm, only partially usable in terms of red dot placement and use of backup iron sights.

Distance from Mount to Lens Center: (No rating)

37mm

Weight (Optic / Optic with Mount): 3/5 Points

207 grams / 340 grams with mount - falls in the middle in this category.

Mount Weight (No rating)

133 grams

Magnification: 5/5 Points

7x magnification with 5 points - highest magnification of all tested magnifiersOptical Quality: 1/5 Points

Disturbances/blurriness, lens edges are visible. Strong oval image

Mechanical Quality: 3/5 Points

Clean processing, recessed adjustment turrets. Deductions for paint (not very durable)

Eye Relief: 2/5 Points

3 cm - Only partially usable. Fine for smaller calibers, not recommended for large calibersField of View: 2/5 Points

5.9 meters at 100 meters - Smallest field of view among devices

Shock-Absorbing/Waterproof: 3/5 Points

Deductions because everything looks quite cheap and not very trustworthy

Adjustability: 3/5 Points

Lens can be adjusted horizontally and vertically. Diopter can also be adjusted. Deductions for stiff diopter adjustment

Mount included yes/no: 5/5 Points

Mount included

Accessories: 1/5 Points

Tool and manual

Price: 4/5 Points

Still affordable at around €160. Mount is not usable.

Source of purchase (No rating)

Frankonia (www.frankonia.de)

CONCLUSION: We can only recommend the Sightmark 7x with strong reservations. It is important to consider the optics used in conjunction with it and whether there is enough space on the firearm for mounting. Additionally, expect significant optical limitations - quick target acquisition is almost impossible here, static targets are preferred.

Also, don't forget, you may need a new mount.

We would like to sincerely thank EL BE tac for their trust and providing the test unit for our comparison test.

SIGHTMARK on the Internet: http://sightmark.com
