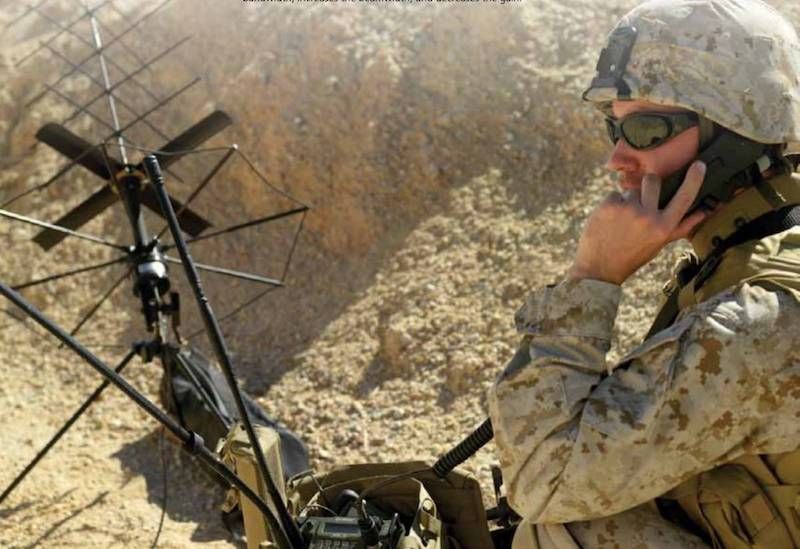

Photo File: Trivec SATCOM Antenna

The AV 2040-2 is a foldable, portable, highly amplifying UHF satellite communication (SATCOM) antenna. It was specifically designed for missions where these aforementioned characteristics are needed. The antenna can be set up in less than two minutes and is very stable.

Technical Data:

AV2040:

Frequency: 240-318 MHz
VSWR: 1.5:1
Polarization: Right Hand Circular (Right Hand Circular)
Gain AV: +11.0 dBic
Power: 200 Watts CW
Axial Ratio: 3 dB
Weight: 6.5 pounds ~3kg
Connector: BNC Male
Military P/N (AV2040-2) NSN 5985-01-149-2576
